Project development for the construction of a hydrogen filling station

Hydrogen
Consulting & development of a long-term project strategy
The first step in advising our client was to present the client's project idea. After clarifying the project goals, the technical feasibility at the planned location was assessed. After the basic cornerstones of the project had been defined and checked for plausibility, the further elaboration could begin.
For this purpose, we identified and approached potential hydrogen customers by means of a sales market analysis. These included companies that will include hydrogen vehicles in their fleets in the future as well as private individuals. Through the collected "letters of intent", the demand could be proven and guaranteed.
The next step was to ensure the availability of green hydrogen. For this, we analysed the sales market and fixed the supply via LOIs.
The preparation of a project outline including technical key points and safety-relevant aspects was carried out in parallel and recorded in a project exposé together with the evidence for demand and supply.
This information was consequently included in the funding application, which was approved after examination by the Free State of Bavaria.
MSR-Innovations will take over the detailed planning of the filling station in the next project step.

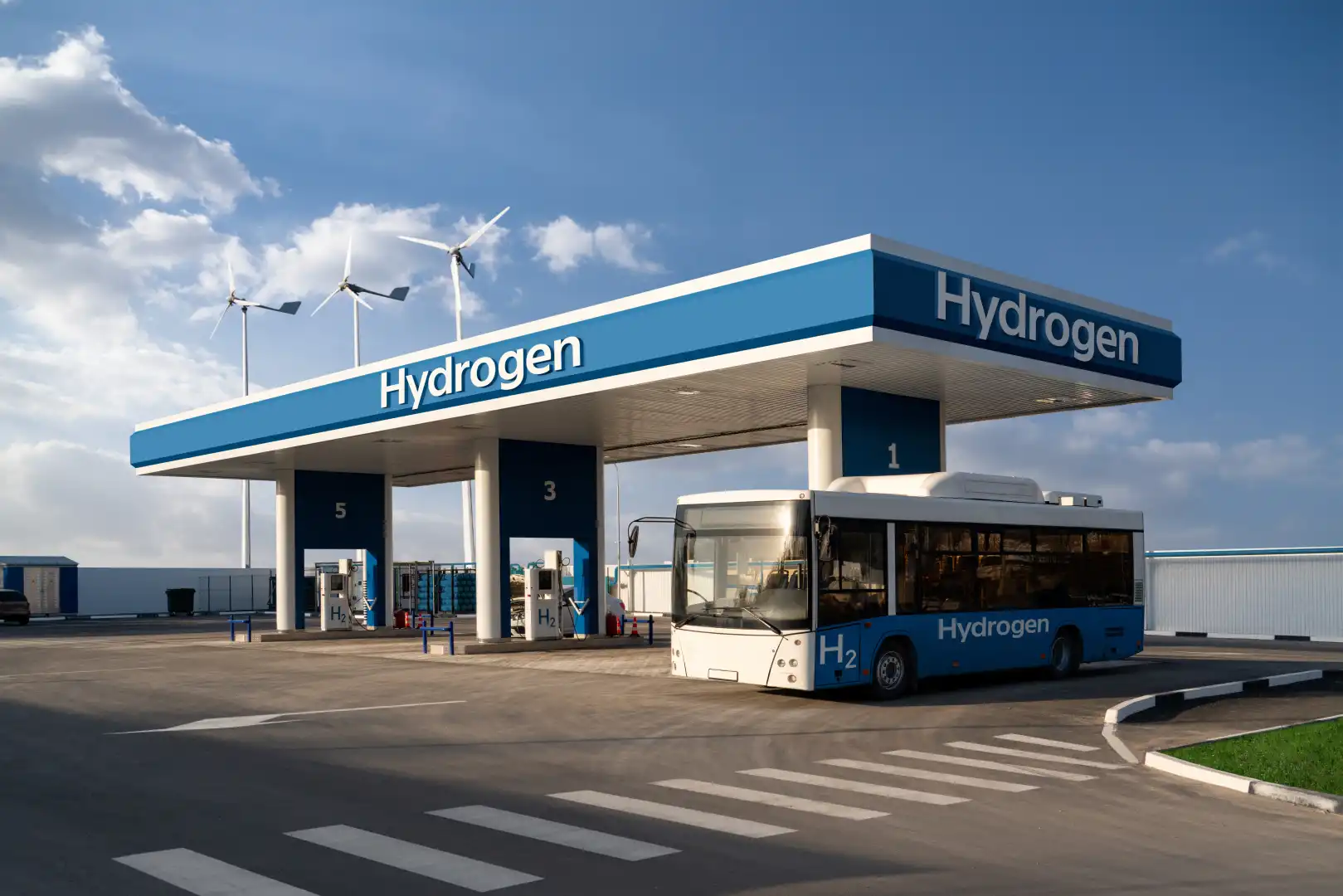

Hydrogen filling station

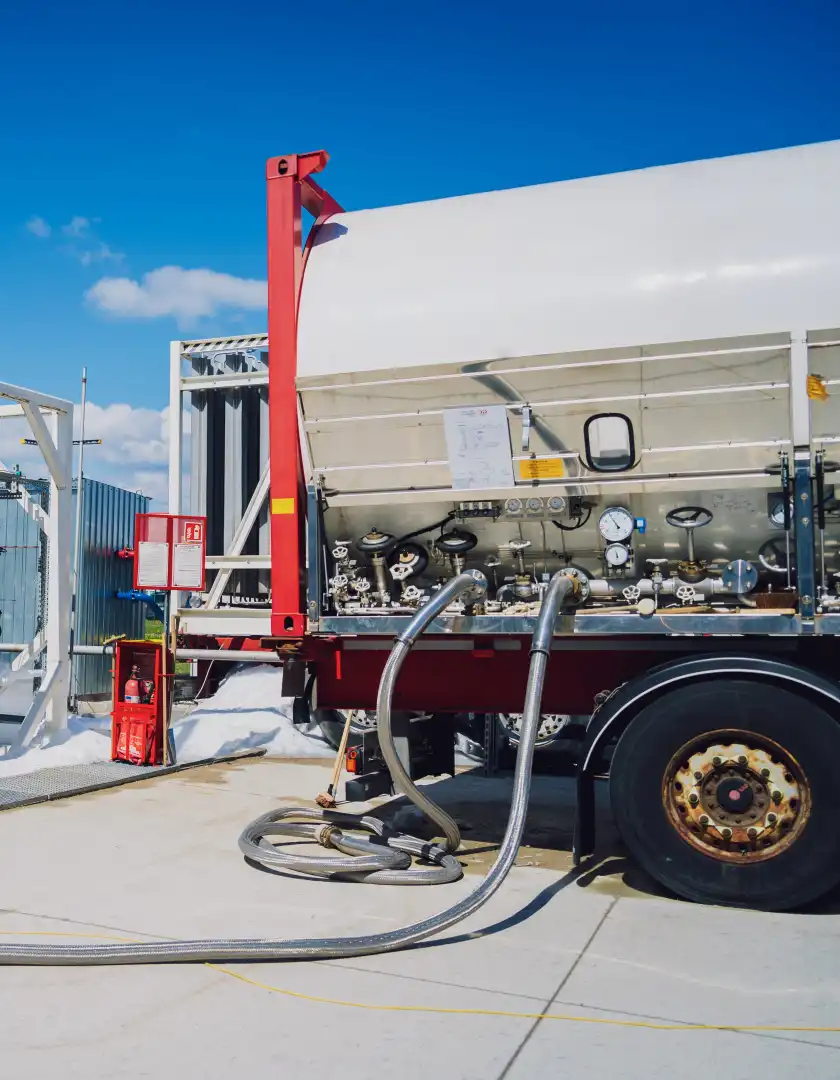

- Hydrogen delivery
- Own generation by means of electrolysis
- Intermediate storage
- Hydrogen dispenser
- Integration of electric charging stations

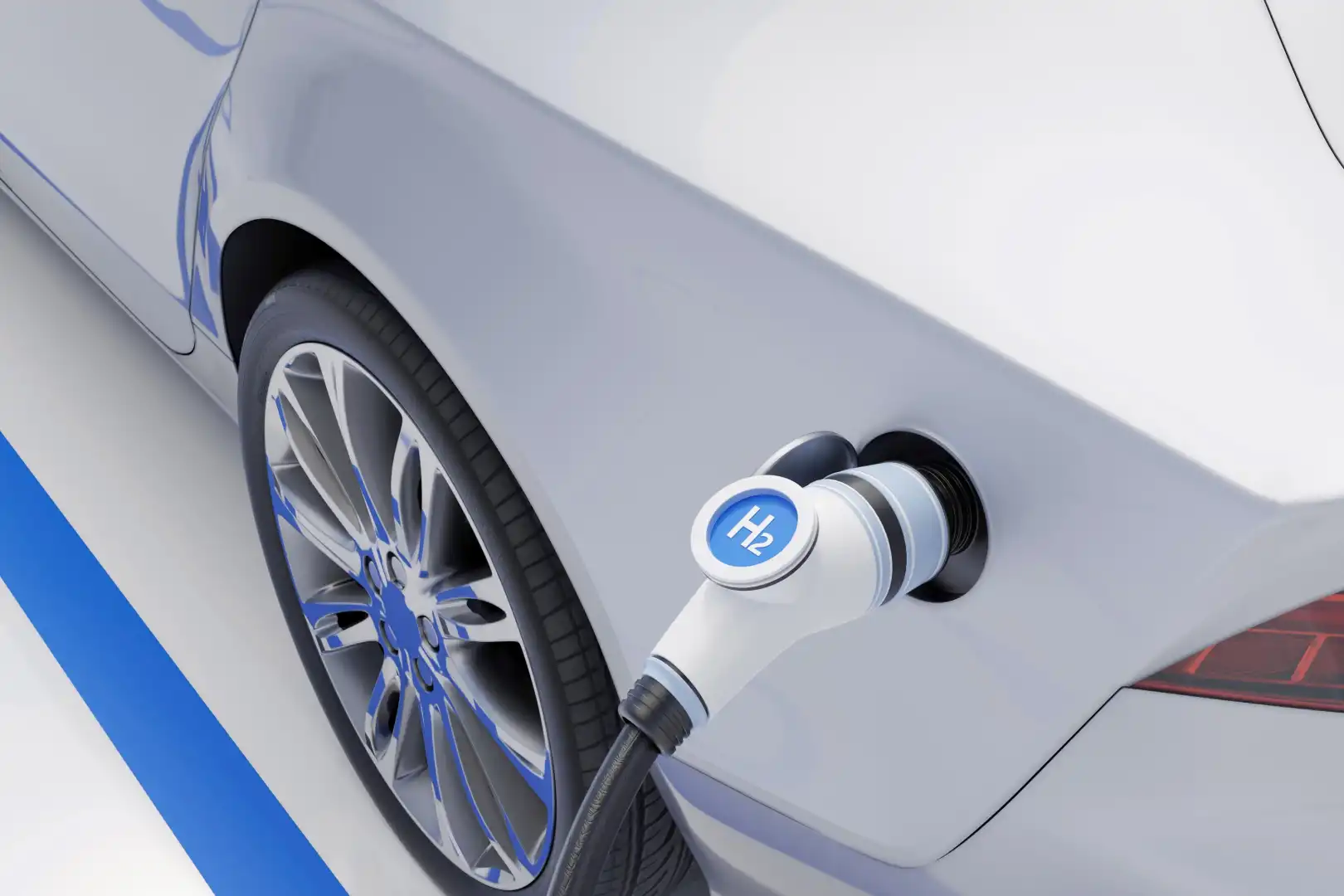

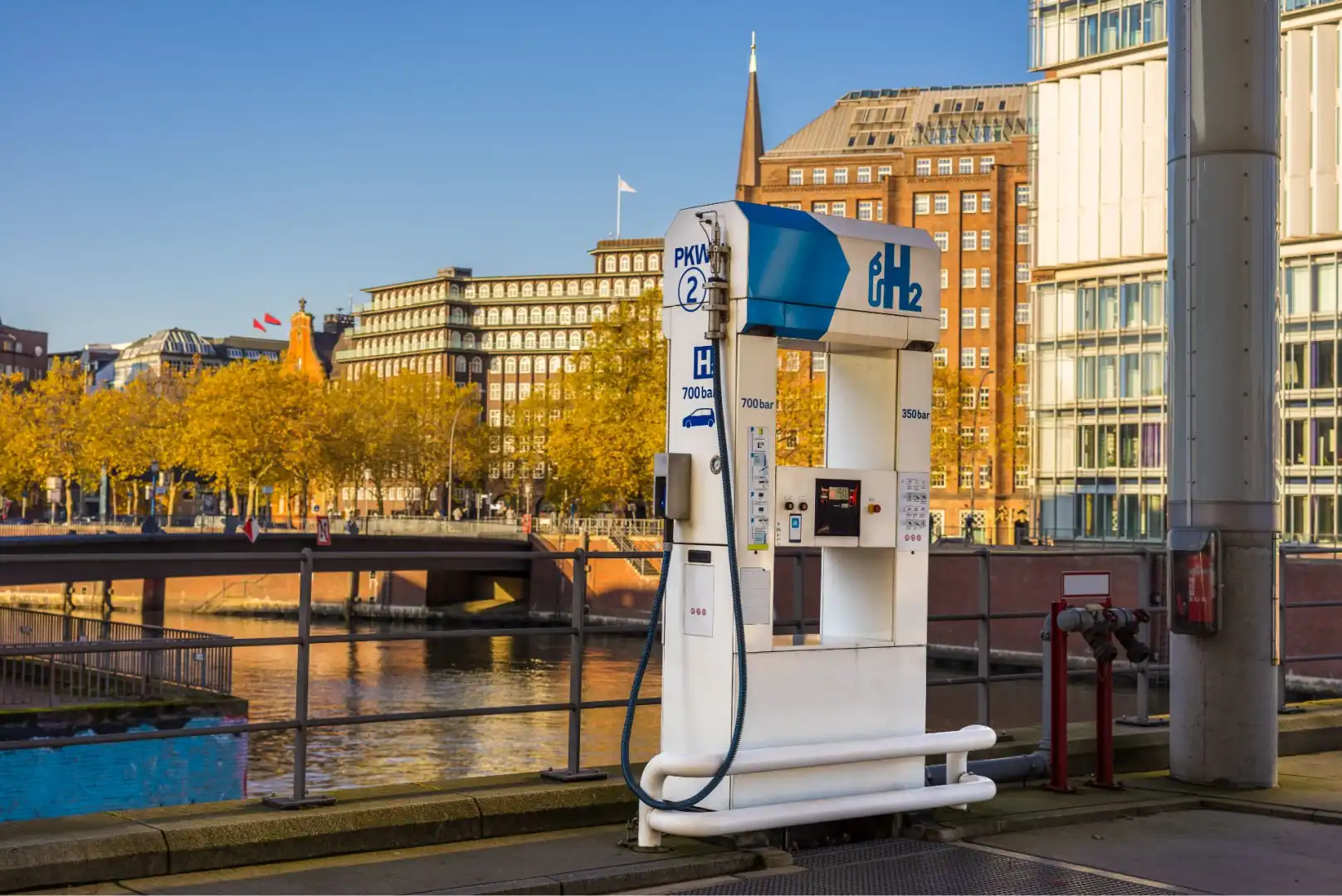

Hydrogen dispenser
- Hydrogen delivery to vehicles or applications
- Pressure regulation for safe dispensing
- Compressed hydrogen is provided
- Contribution to hydrogen mobility

Explosion protection zone
- Establishment of an EX-protection zone
- Gas warning system
- Average fan
- automated emergency shutdown

Hydrogen distribution
- Piping systems for hydrogen distribution
- Hydraulic systems

Hydrogen bundle storage
- Storage of hydrogen in compressed gas cylinders
- Maximum flexible
- scalable
- 700 bar
- Modular

Hydrogen high pressure tank
- Storage of large quantities of hydrogen
- 300 bar
- application-related design

Hydrogen is the energy carrier of the future. In many areas, it is becoming apparent that electrification is reaching its limits. Here, hydrogen is the perfect alternative to drive the energy transition.
